150CC Brazil CG Titan Street Motorcycle Square Light KEMA Carburter Alloy Wheel
Details:
| MAIN SPECIFICATION |
| ENGINE |
| Engine Type: | Single-cylinder,air-cooled, 4-stroke |
| Displacement (ml): | 149.6ml |
| Bore X Stroke (mm): | 62×49.5 |
| Compression Ratio: | 9.2:1 |
| Max. Power (kw/r/min) | 8.2/8000 |
| Max. Torque (N.m/r/min): | 10.5/6000 |
| Max. Speed (Km/h): | ≥90 |
| Lubrication: | Pressure ,splash |
| Clutch Type: | Multiplate wet clutch |
| Ignition: | CDI |
| Starting System: | Electric/Kick start |
| Transmission System: | Chain drive |
| CHASSIS |
| Front shock absorber: | hydraulic pressure and spring |
| Rear shock absorber: | hydraulic pressure and spring |
| Chassis structure: | Steel tube and steel plate,rhombic structure |
| Rear fork: | steel |
| Front Brake: | Disc/Drum Brake |
| Rear Brake: | Drum Brake |
| Front Tire: | 2.5-18 |
| Rear Tire: | 3.00-17 |
| Muffler: | steel |
| Steering Head Angle: | 39/41 |
| Wheel rim | Alloy/Spoke |
| Battery: | 12V5Ah |
| DIMENSIONS |
| L X W X H (mm): | 1920*770*1080 |
| Seat Height (mm): | 845mm |
| Wheelbase (mm): | 1290mm |
| Min. Ground Clearance (mm): | 160mm |
| Max. Permissionable Weight (kg): | 150 |
| Rider Capacity: | 2 Persons |
| Dry. Weigth (kg): | 85 |
| Fuel Tank Capacity (L): | 18L |
| Packing Size (mm): | 1480×380×860 |
| Packing Weight (kg): | 105 |
Product description:
1. This is classic model in South America market. and Praised and recommended by the importers and dealers. Proved and accepted by consumers in dozens of years
2. With parts durability and high performance by top spare parts suppliers’ chain.
3. CG150 engine provides consistent and powerful and stable power output.
4. 2 year or 30000 Km quality guarantee demonstrates our confidence in our products and our commitment to our customers.
5. 96 units SKD packing and 170 sets CKD packing help customers save transportation costs and avoid damage during the transportation.
Options:
MP3, USB, Remote Controller, Alarm
Customed Color And Sticker Design Is Accepted
Light: LED Light/ Halogen Lamp
Odometer: Digital Odometer/Mechanical Odometer
Engine: 150CC/200CC
Lagguge: Rear rack/ Small rear carrier/ Tail box
Product shows
|
|

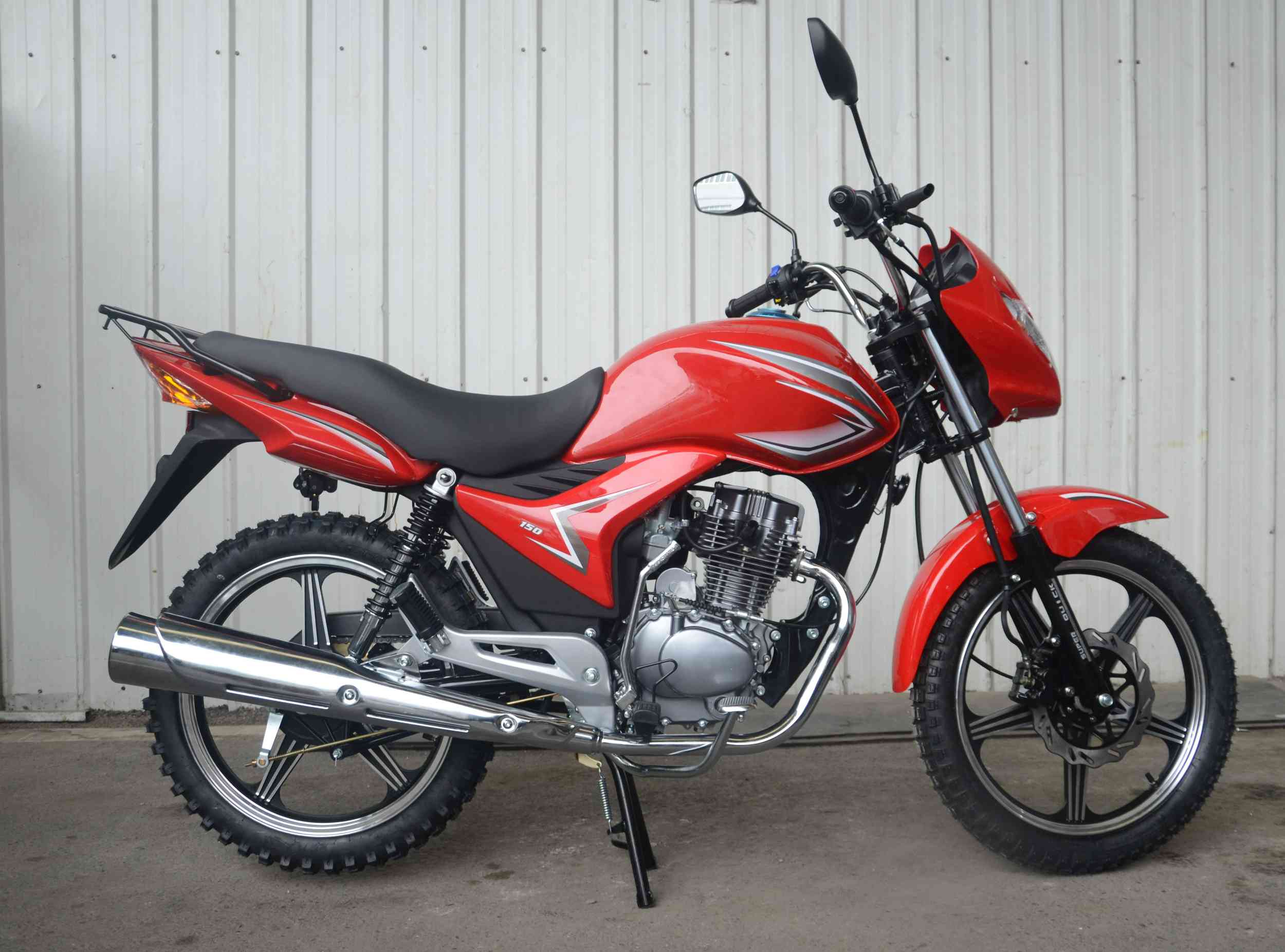

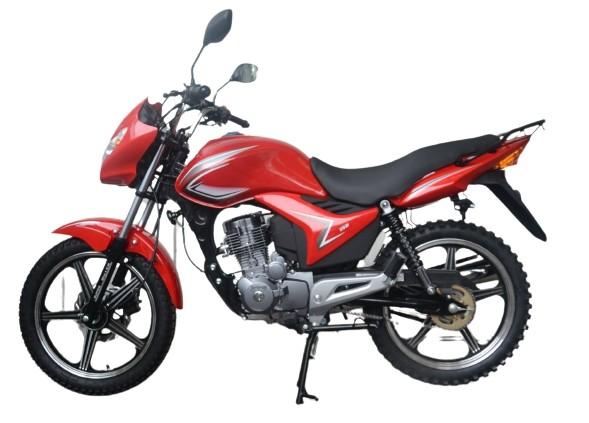

150CC Brazil CG Titan Street Motorcycle Square Light KEMA Carburter Alloy Wheel Images
|
